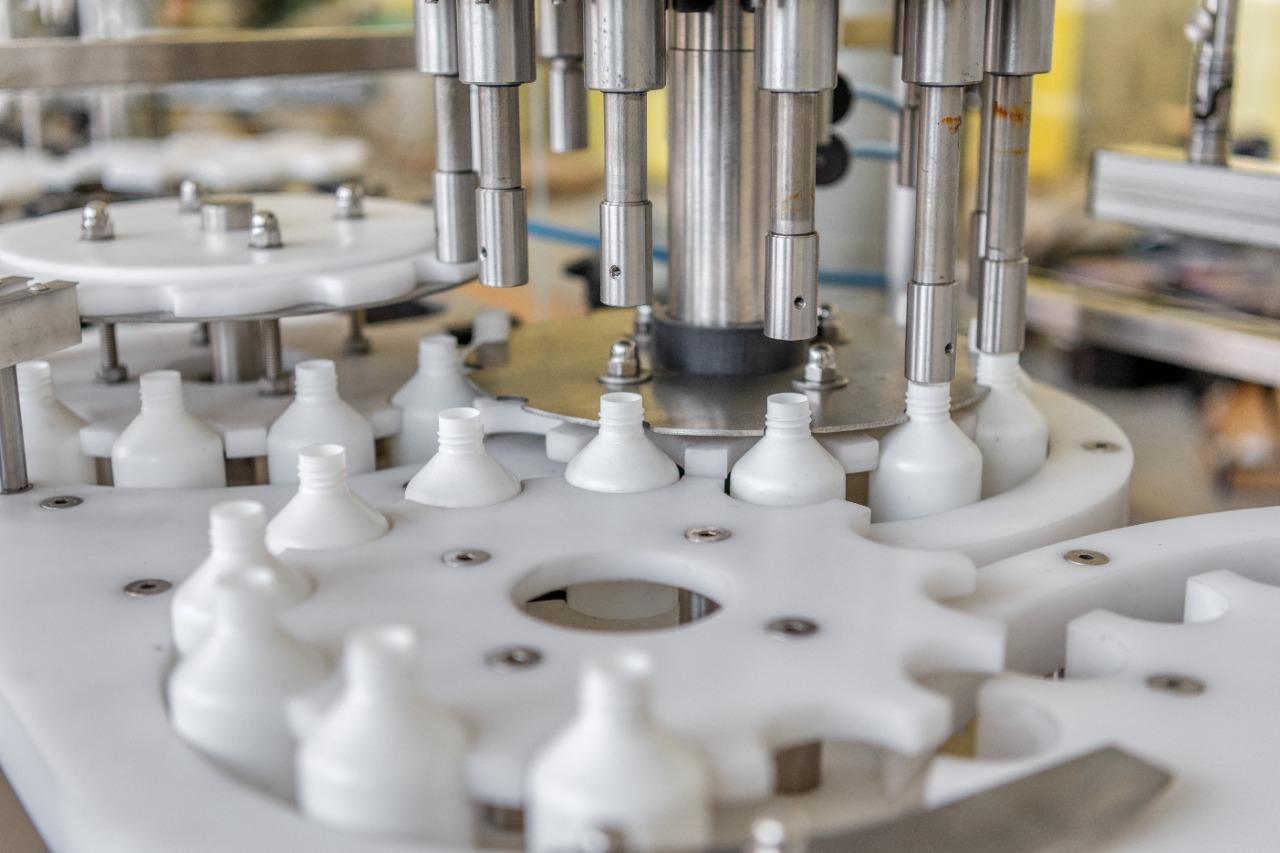

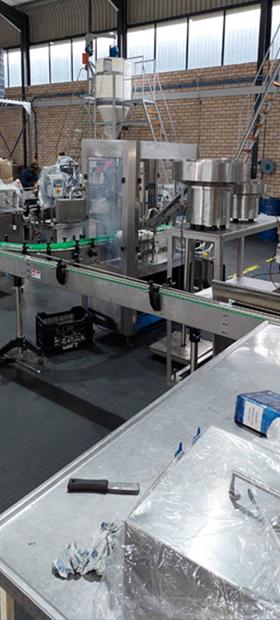

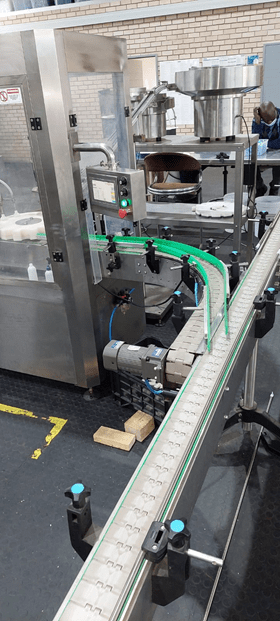

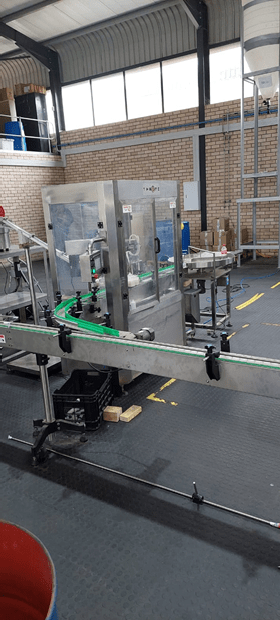

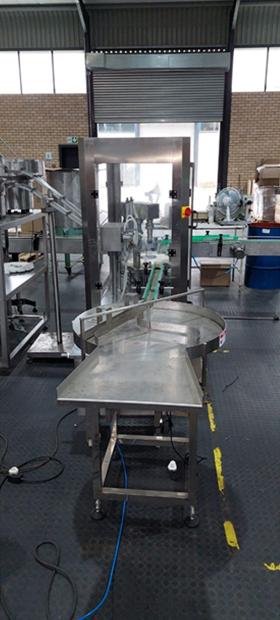

SQUIRT LUBE MACHINES

– Inhouse built machines for filling and packaging of bicycle lubrication.
    – Subcomponents imported and customised to meet customer requirement
– Project value estimated at more than R3 Million.
– Project duration 18 months
– Services offered
    – Design, manufacturing, and Factory Acceptance Testing
    – Installation and commissioning of the machines

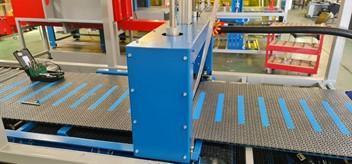

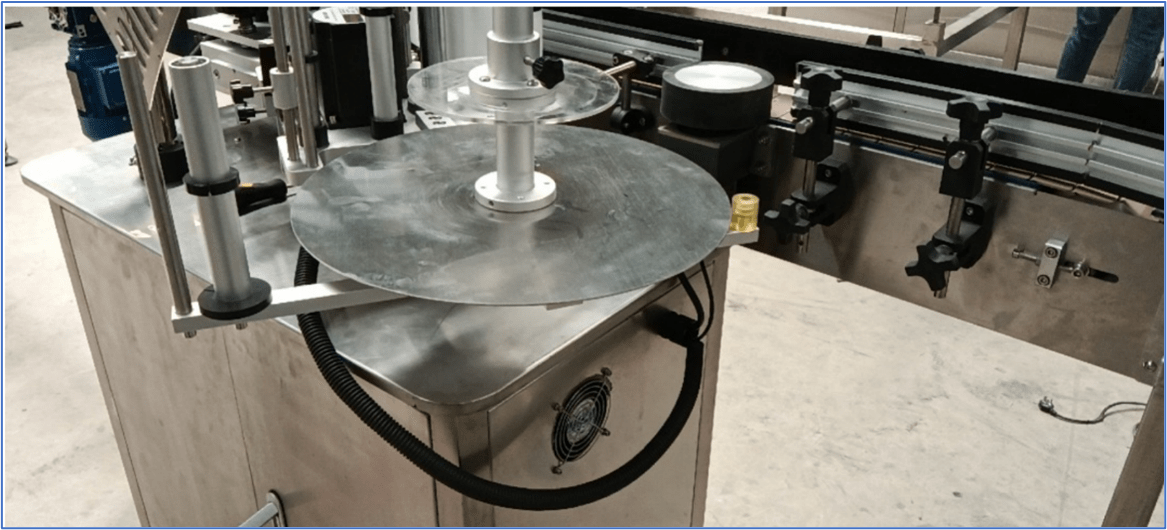

    – Conveyor systems upgrades (infeed rotary tables and 90-degree bends for conveyors).
    – After Sales support

FRIO SPARKLING WATER UAE(DUBAI)

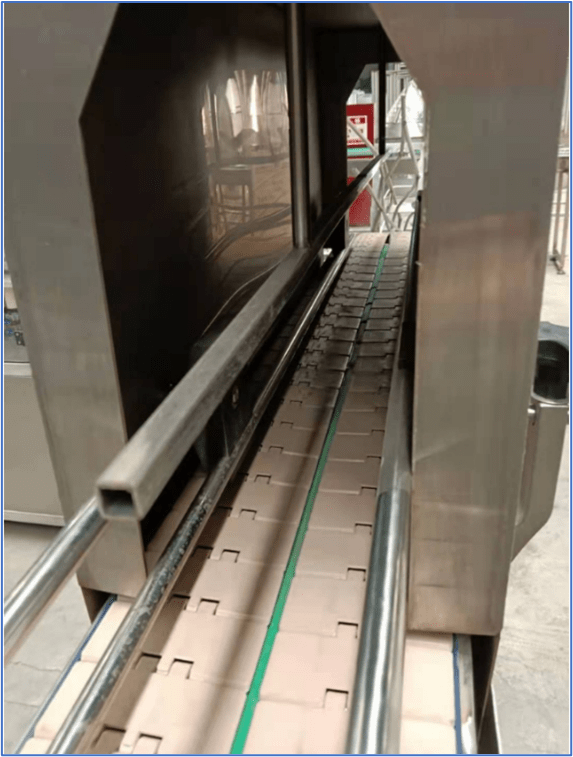

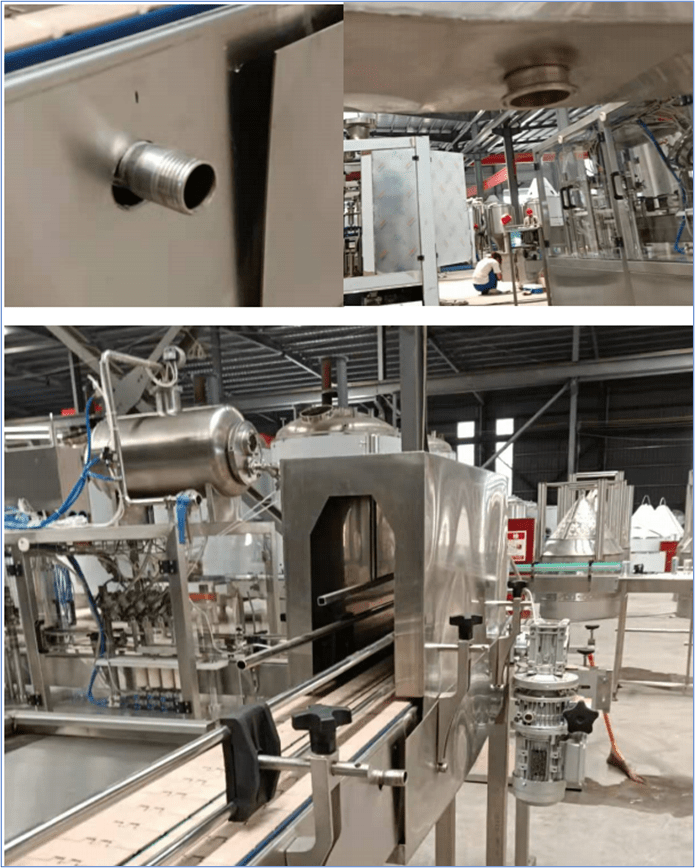

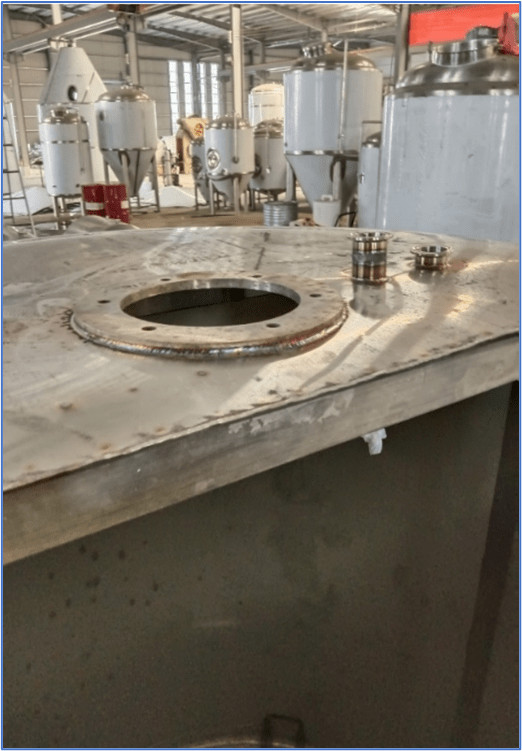

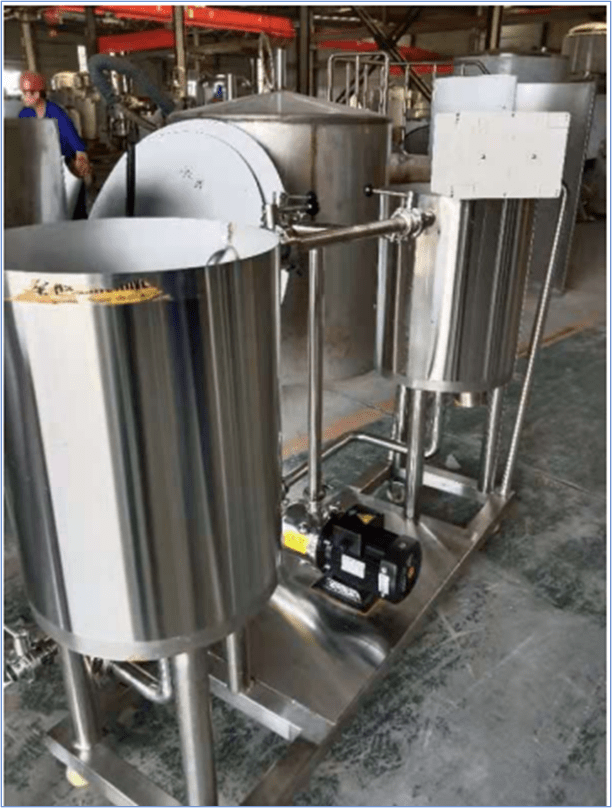

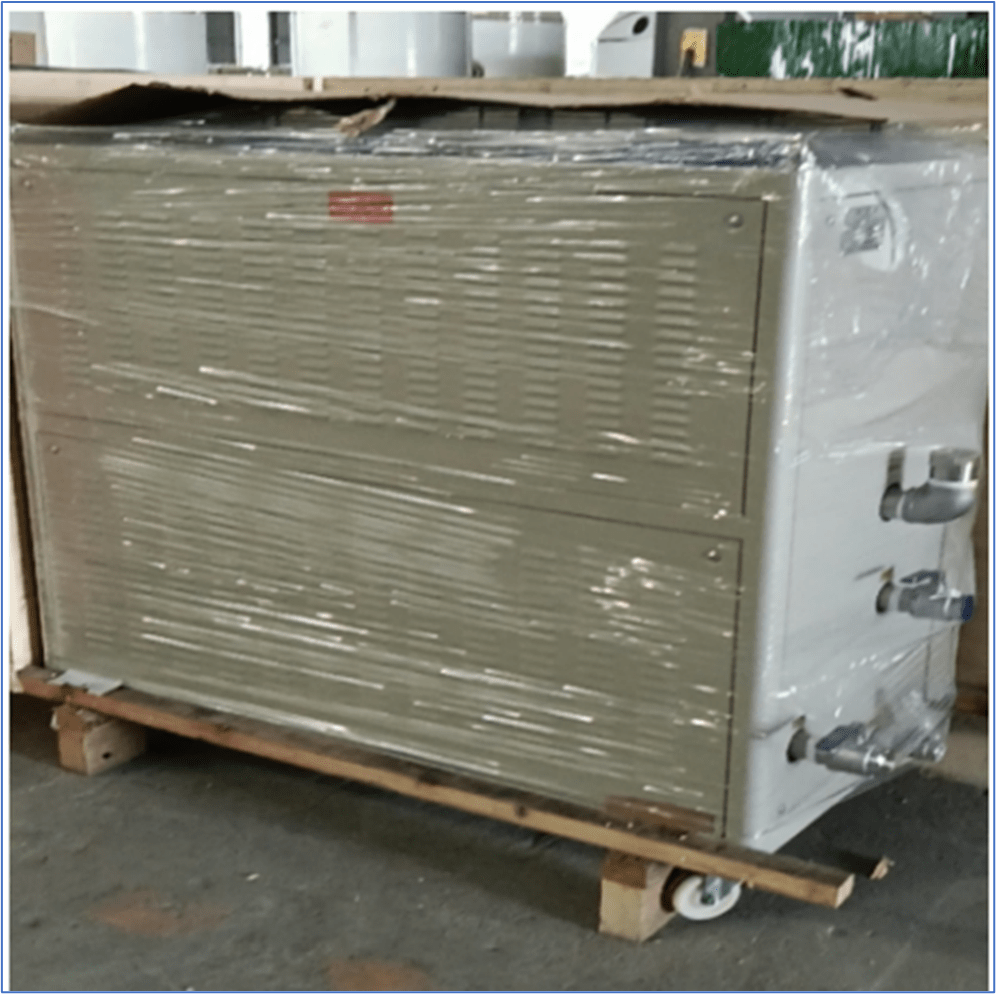

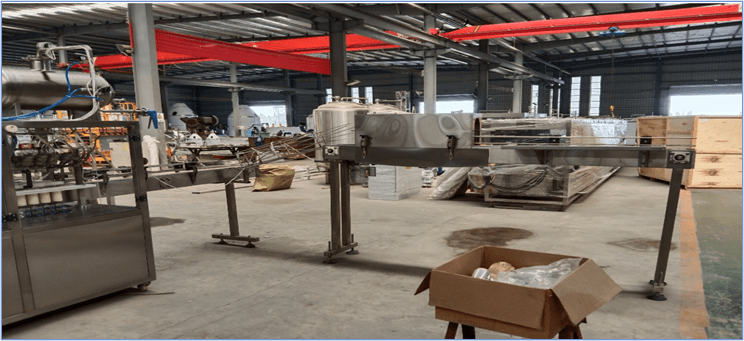

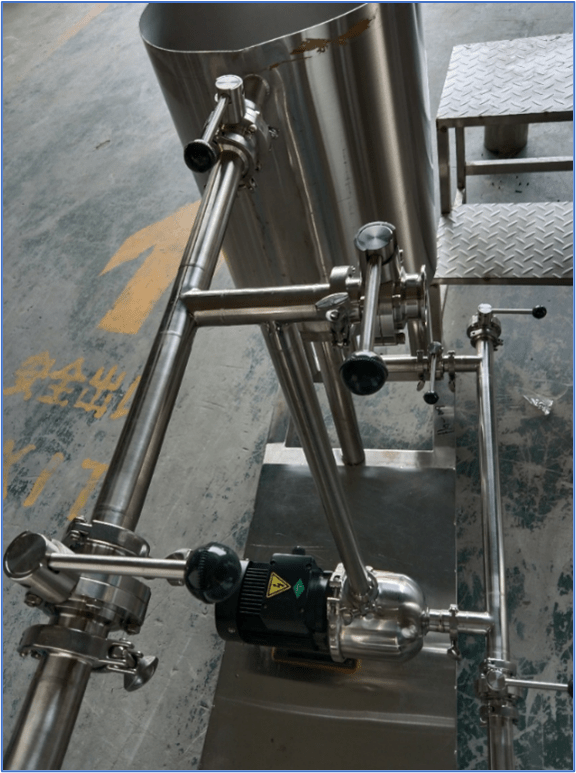

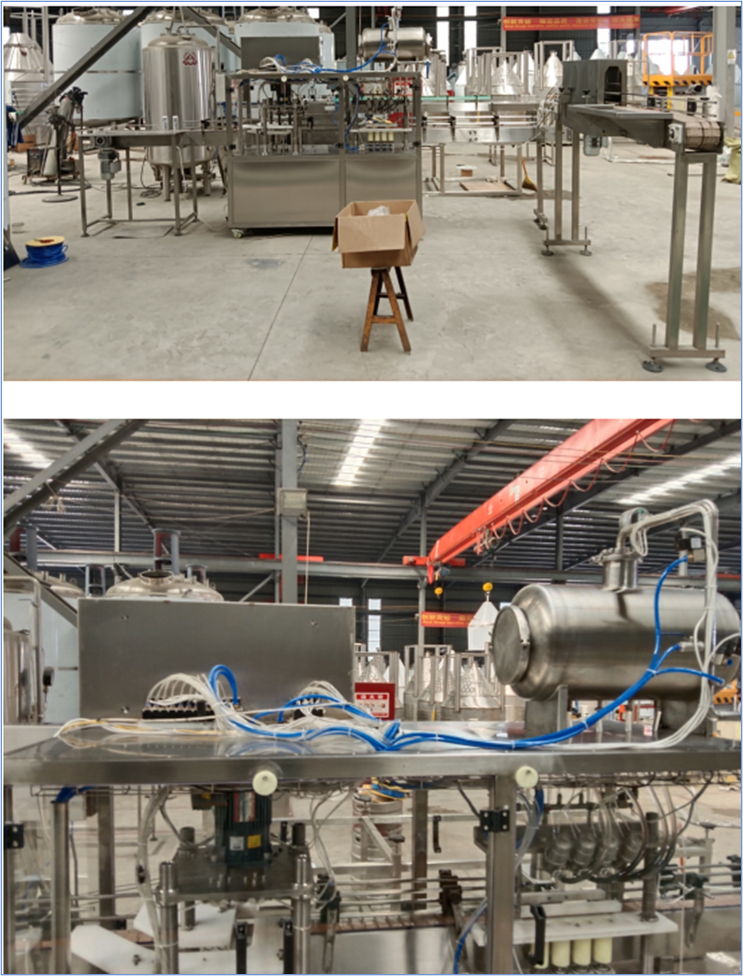

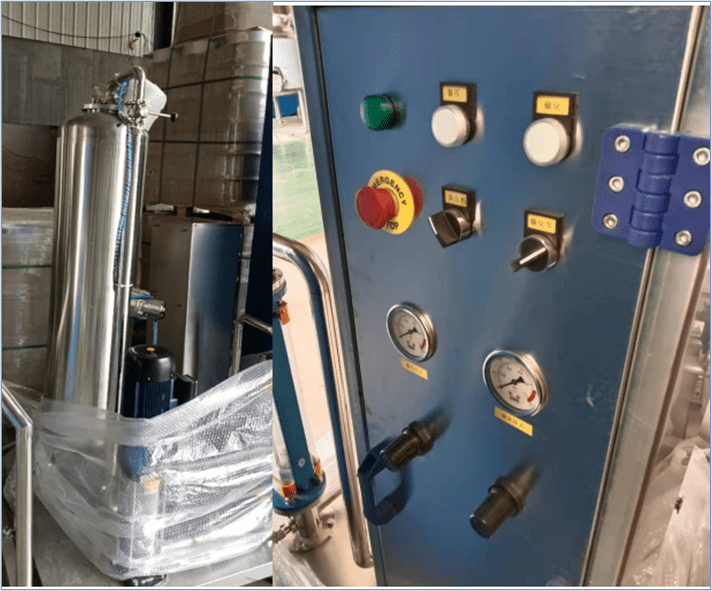

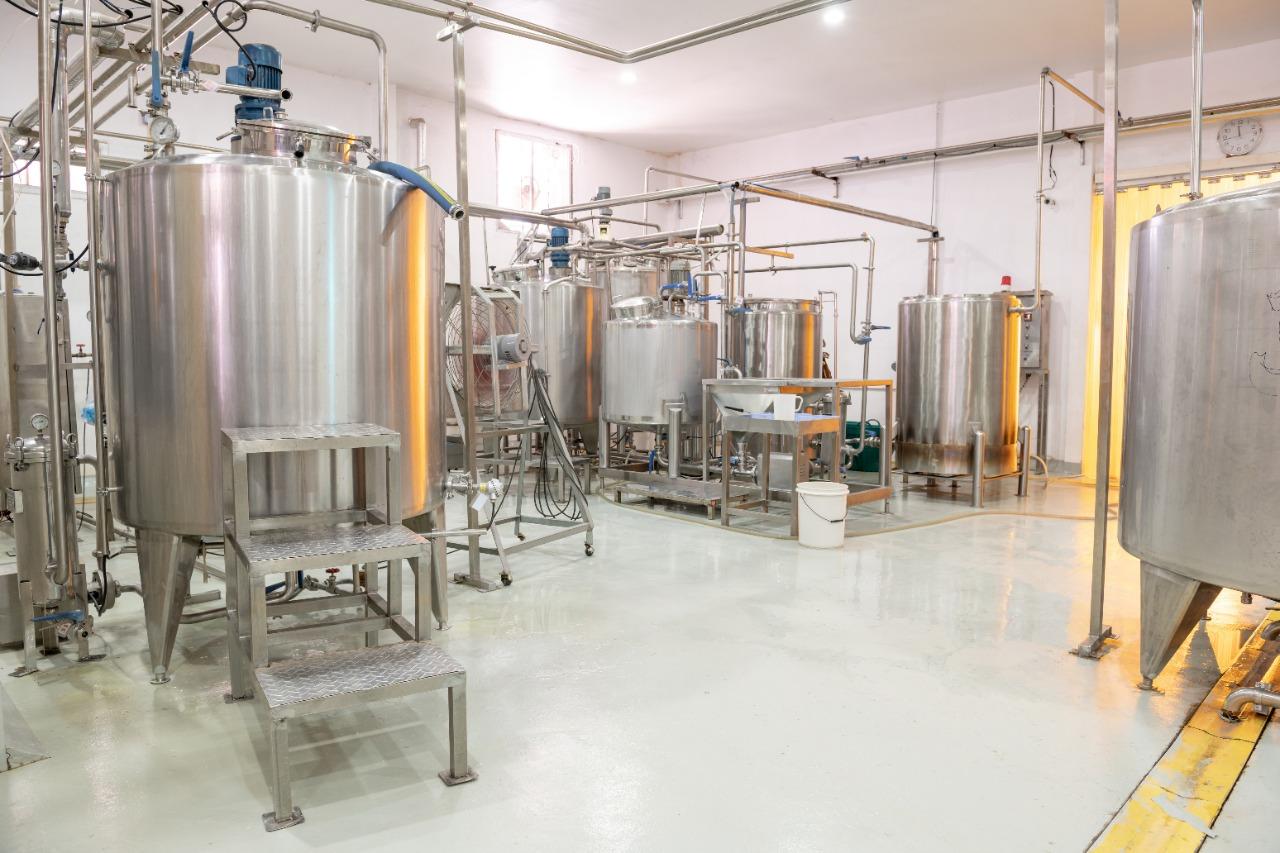

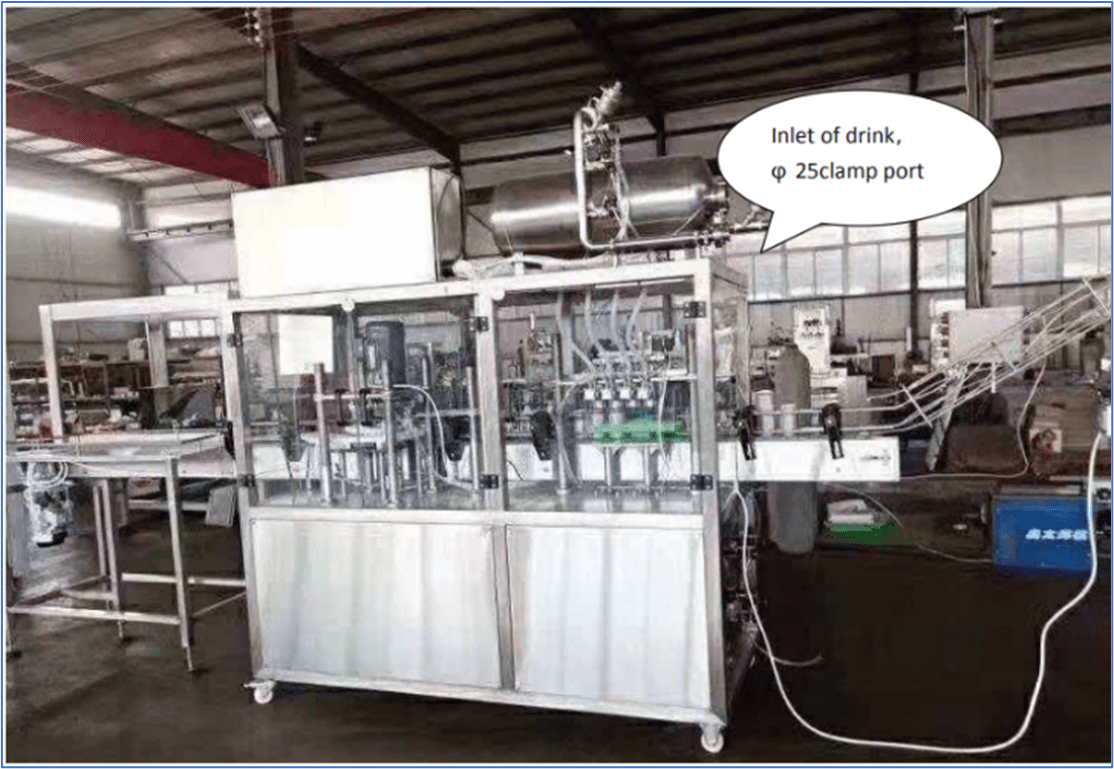

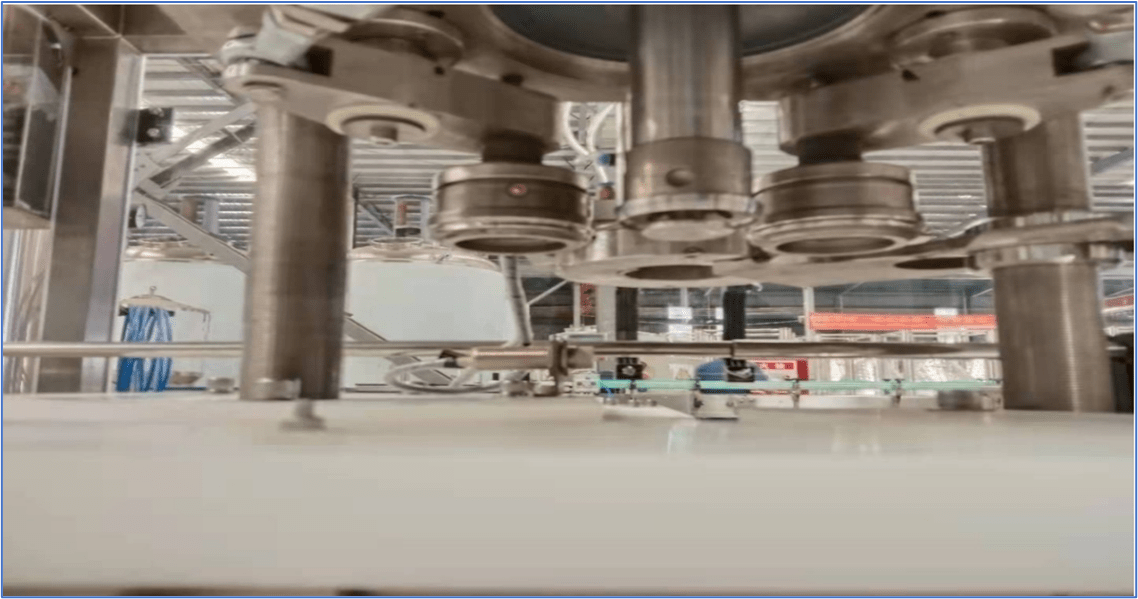

Inpakt SA is dedicated to supplying equipment and offering services in Middle East and Africa. Recently the company offered Frio Sparkling in UAE(Dubai) a turnkey solution for water bottling (processing to packaging). This project was structured as follows:

  • Processing and packaging equipment supply
    • Including 3rd party equipment sourcing (date code machines)
  • Logistics management
    • Equipment was sourced from China and delivered to Dubai
    • Inpakt SA facilitated all logistical requirements for the project
  • Factory Acceptance Testing and Equipment customization
    • Video based between Inpakt SA(OEM) and Frio Sparkling
    • Onsite equipment inspection done by independent OEM Inspector in China.
    • Equipment passed with minimal adjustments
  • Equipment installation and Commissioning
    • Still pending (due 2022)
    • Options to send out Inpakt SA highly qualified Engineers and Technicians for the installation, commissioning, and Performance Acceptance Testing
  • After sales support
    • Still pending
    • Proposal for annual equipment service, inspections, audits, and overhauls support
    • SLA to be set up

Matsimela – Perfume Semi Automatic Line

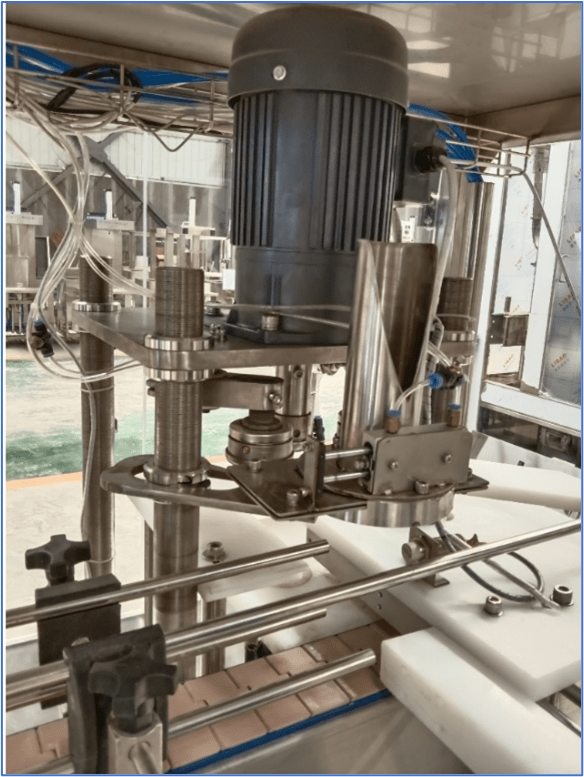

Filling, Capping & Labelling Machine
Year: 2021
Client Name: Olivia Nel

Boden Chem

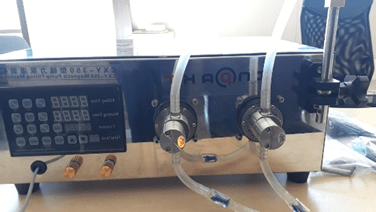

Semi Manual Bottled Water Rinsing & Filling Line Labelling Machines
Year: 2021
Client Name: John Banks / Patricia Banks
info@bodenchem.co.za

Fehmz Mocktails – Pneumatic Crown Capper

The machine is a capper for Ø26 and Ø29 crown caps.
This machine is height adjustable and enables capping bottles with a maximum height of 46cm and maximum diameter of 12.5 cm.
It operates with a minimum 20 litres compressor with adjustable pressure from 8-10bar. With protective screen and two buttons.
Year
: 2021
Client Name: Fehmida Jordaan
Fehimda.osmanlatib@gmail.com

Del Monte Fresh Produce Company

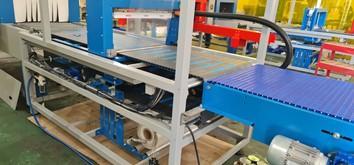

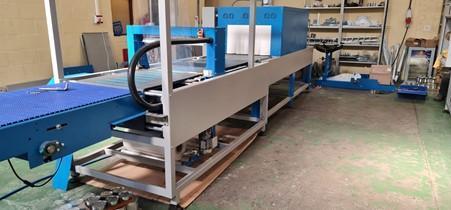

Combination inline belt infeed and shrink tunnel: Model 65 BI 40/Servo
Combination inline belt infeed and shrink tunnel with opening dimensions of 650 wide x 400mm high x1500mm long including a 2 MT long high grip sectional-built infeed conveyor and SERVO action chasing sealing bar. Including a full colour MMI with graphic fault display and on-screen diagnostics. Our Model 65 BI 40/Servo
Line Speed: 30 Packs per minute using 40-micron LDPE virgin shrink film Frame: Heavy duty mild steel
Finish: Powder coated
Sealing System: Pre heat sealing system, air operated to ensure smooth operation and constant sealing pressure.
Film Feed: Demand film feed by motorised units fitted to top and bottom
Hot Box: 1500mm heat chamber
Seal Cooling: By jet air
After Coolers: Single after coolers
Pack Clamp: Pneumatic
PLC: Delta with full colour MMI
Conveyor: Galv wire mesh No 3 weave
Switch Gear: Lovato
Sensors: Omron
MCB: Hager
Year: 2021
Client Name: Alexander Higuera

Donaldson Filtration Systems (Pty) Ltd

Side Belt Carton Sealing Machine GPK80T This machine is a series of automatic box functions, single operation, economical and efficient.

Model: GPK80T
Packing size: L130-3000 * W80-300 * H90-400mm
Loading weight: 1-30kgs
Table height: Min 580, Max 750mm
Working speed: 18M/min
Power supply: 220V/110V 50/60HZ 1PH
Motor power: 120w
Air pressure: 0.6mpa
Tape width: 2inch / 3inch
Net weight: 150kgs

Year
: 2021
Client Name: Leslie Harland

Eco Farm Moçambique Limitada

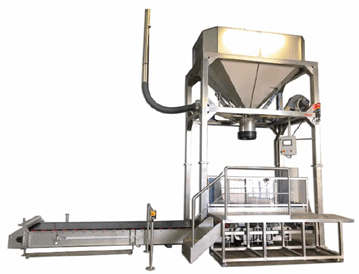

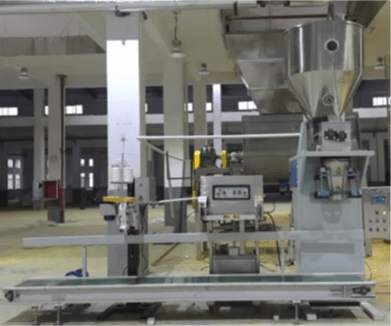

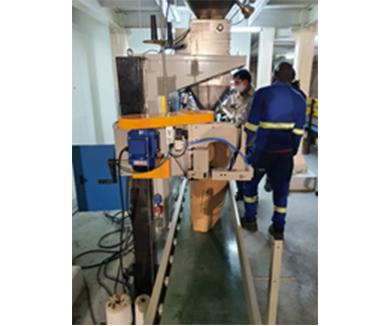

Bag fill weighing & stitching machine INP-T840
2 x Pneumatic valve gates and Y type connections to packing machine

These are semi-automatic systems where the operator places the bag in clamping position. The bag gets clamped pneumatically and is filled with the desired quantity of material and discharged on a conveyor. The bag moves down the conveyor where a stitching machine is fitted. An operator is required to guide the bag at the stitching machine.
Bulk bag filling by means of a gross weigher process; the bag is being weighed while filling. A net weight bag filler will have a higher throughput rate because weighing takes place during the same time as the previous bag is being removed and the new one is being placed in position.
Main Feature:
Fall Weigher
SUS304 contacting in plain plate
Adjustable material thickness
Quick-released parts
Hopper open driven by step motor
Built-in electronic cabinet
High accuracy load cell
Touch Screen control
Weighing range: 5-50Kg
Weighing Speed: 3-8PPM
Accuracy 1%-1‰
Power: 220V, 50HZ, 1Phase Net weight: 150kgs
Year: 2020-2021
Client Name: Rademan Janse van Rensburg

B Braun Medical

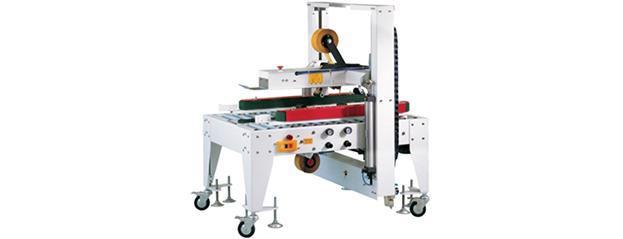

The semi-auto carton-sealing machine, mainly designed for sealing and packing of cartons, it is economical and easy adjusting equipment, it can finish upper and down sealing at same time. It can be equipped with tape printer to improve appearance of products. it is widely applied in the fields of domestic electrical appliances, textiles, foodstuffs, general merchandise, medicine, chemical products, etc.

  • 2 top bottom belts
  • Width adjusts by crank
  • Heavy duty frame
  • Adjustable tape ends length from 30-60mm
  • Tape roll length: 500M Technical data:
  • 2 top bottom belts
  • Width adjusts by crank
  • Heavy duty frame
  • Adjustable tape ends length from 30-60mm
  • Tape roll length: 500M Technical data:

Year: 2021
Client Name: B.Braun Medical (Pty) Ltd – Brendon van Deventer

B Braun Medical

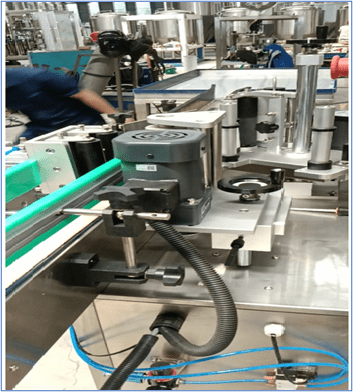

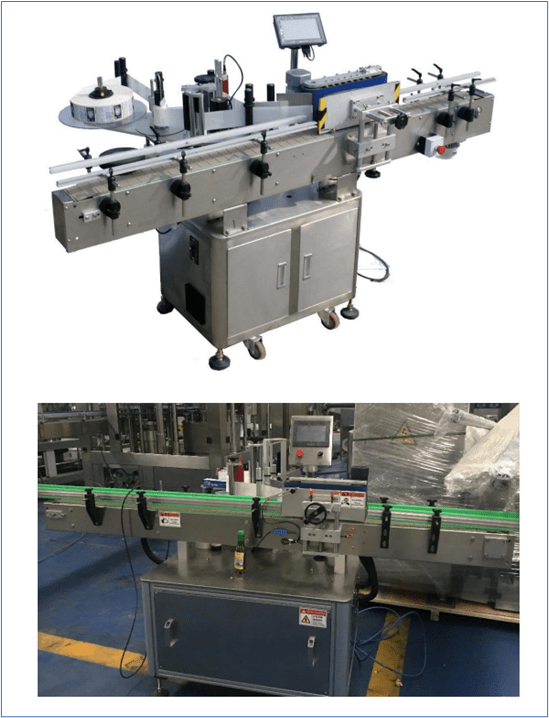

Single Side Labelling Machine / LBL400
Single side Labelling machine for are suitable for applying Labels on Flat/Oval/Square shape
containers with output up to 4000 Labels per minute depending on products and label size on one side.

  • This machine is applied to flat bottles for cosmetics, food, beverages, liquor, medicine, etc.

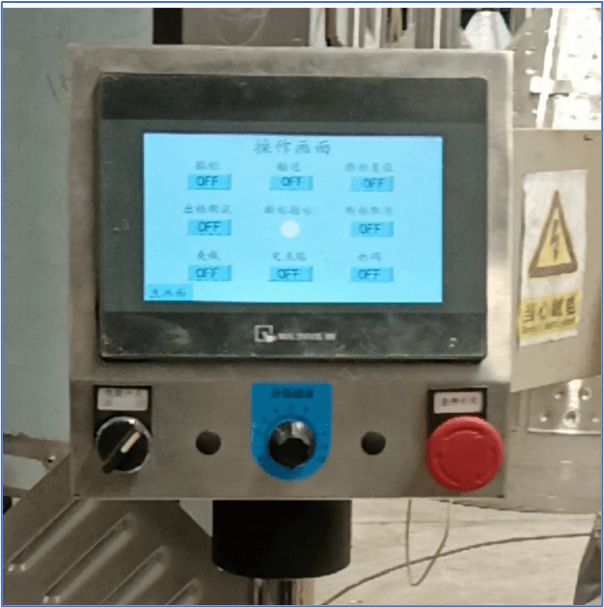

  •  PLC control, full-automatic working Touch-screen control panel, easy operation
  • 2 top bottom belts
  • Width adjusts by crank
  • Heavy duty frame
  • Adjustable tape ends length from 30-60mm
  • Tape roll length: 500M Technical data:
  •  The machine can customize production line, Stand-alone operation can add automatic feeding mechanism.
  •  Sensor control
  •  304 stainless steel machine full body
  • 2 top bottom belts
  • Width adjusts by crank
  • Heavy duty frame
  • Adjustable tape ends length from 30-60mm
  • Tape roll length: 500M Technical data:
  •  The inaccurate labelling is eliminated because of the structure of three rollers capable of locating labelling position.
  •  The machine structure adopts enhanced rigidity design, make the machine own a simple, elegant, and stable appearance.
Year: 2021
Client Name: B.Braun Medical (Pty) Ltd – Brendon van Deventer

Cape Herb and Spice A division of Libstar Operations (Pty) Ltd

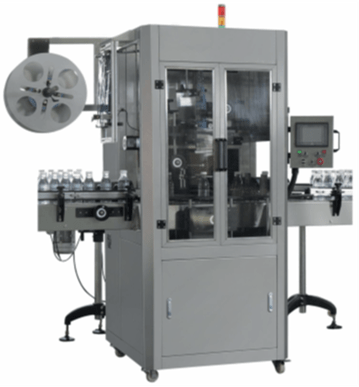

HFF250M shink sleeve applicator
The body of this label inserting machine adopts a great deal of aluminium alloy, combined with anode treatment and 304 stainless steel, enabling the overall structure of the machine to be more robust and durable. As for mechanical performance, its modular and
human-oriented design ensures easier operation with high speed and more convenient style change. Human-machine interface is adopted for the control circuit, and it is easy to learn. The excellent circuit design further ensures the label inserting speed of this machine to be in the leading position internationally. Due to its completely new design concept, not only lots of mechanical adjustment has been eliminated, but also the accuracy of label cutting, and production speed has been further enhanced.

Year: 2019-2021
Client Name: Mike Bremmer
